  • Naan bread making machine

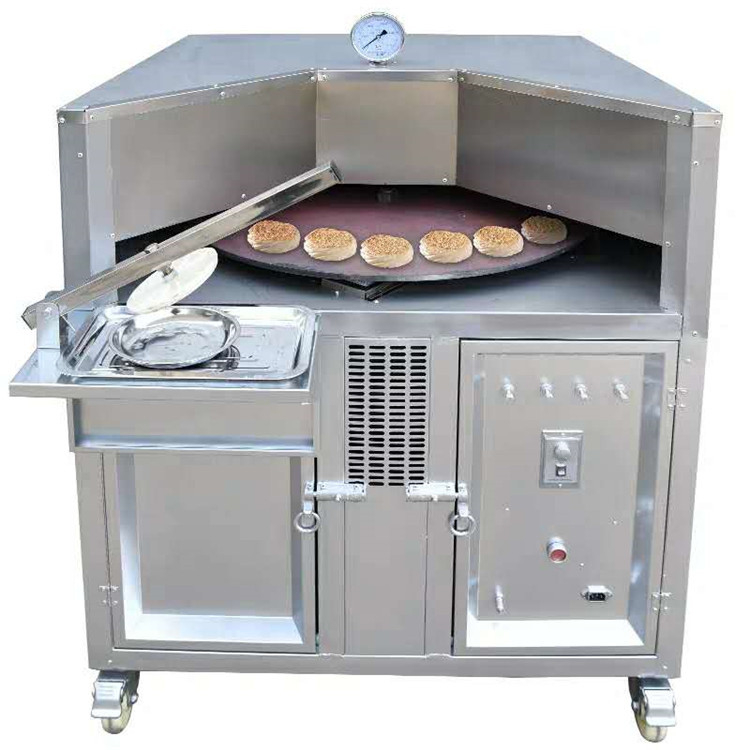

Naan bread making machine


This machine has scientific and compact structure:

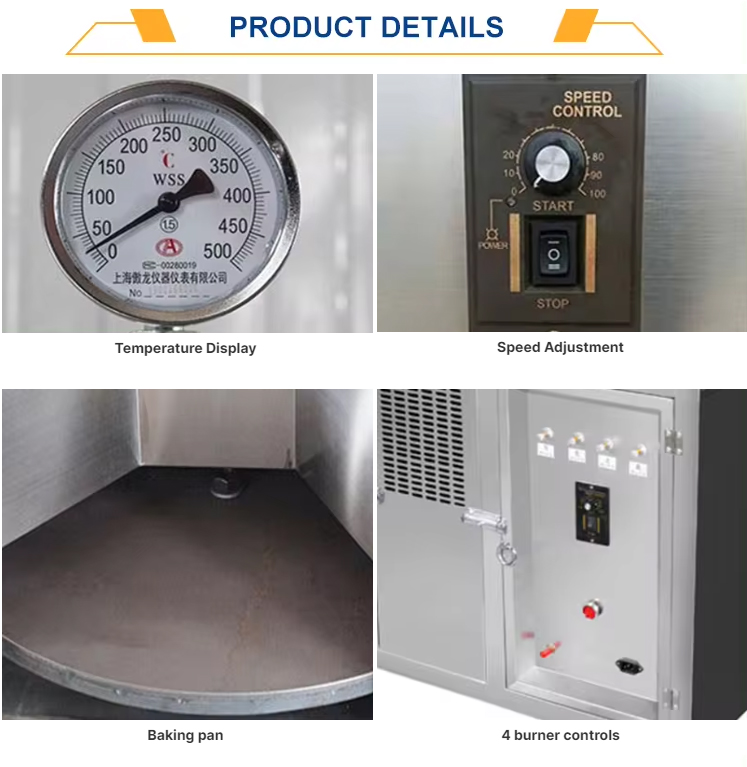

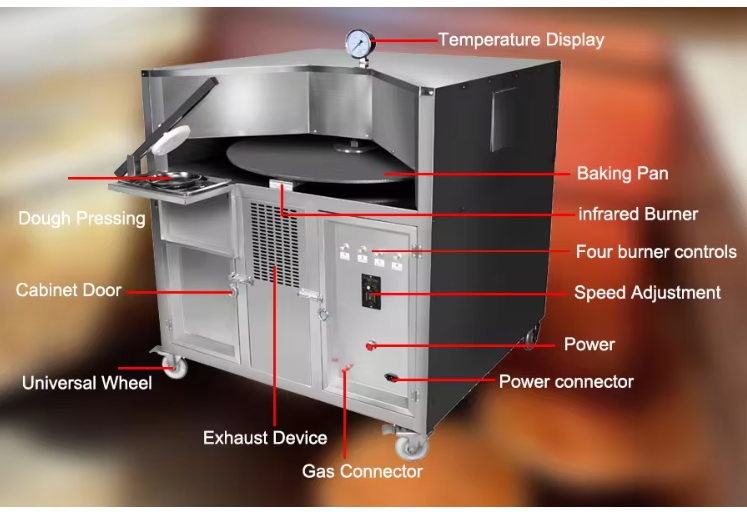

Thermometer on top, rotaty plate, moulding press, gas volume adjusting valve, gas connector, power switch, rotating Speed regulator, Overhaul hole, etc. machine body is made of high quality stainless steel. easy operation, saving large time and labor cost.


1

Power supply: According to the customer's requirements, select the power supply, insert the power socket during operation, turn on the power switch and adjust the speed regulator

2

Gas: Insert the gas pipe into the gas inlet and tighten the locking hose clamp

3

Ignition: turn on the gas main switch, first ignite the middle rear part of the burner with the igniter, then ignite the left and right two burners, and finally ignite the burner

4

Gas regulating valve: The gas regulating valve has been adjusted before leaving the factory, and the customer can adjust the flame according to his own requirements;

5

temperature: the temperature of the thermometer is 260-350 degrees is the normal production temperature
