  • Rotary oven

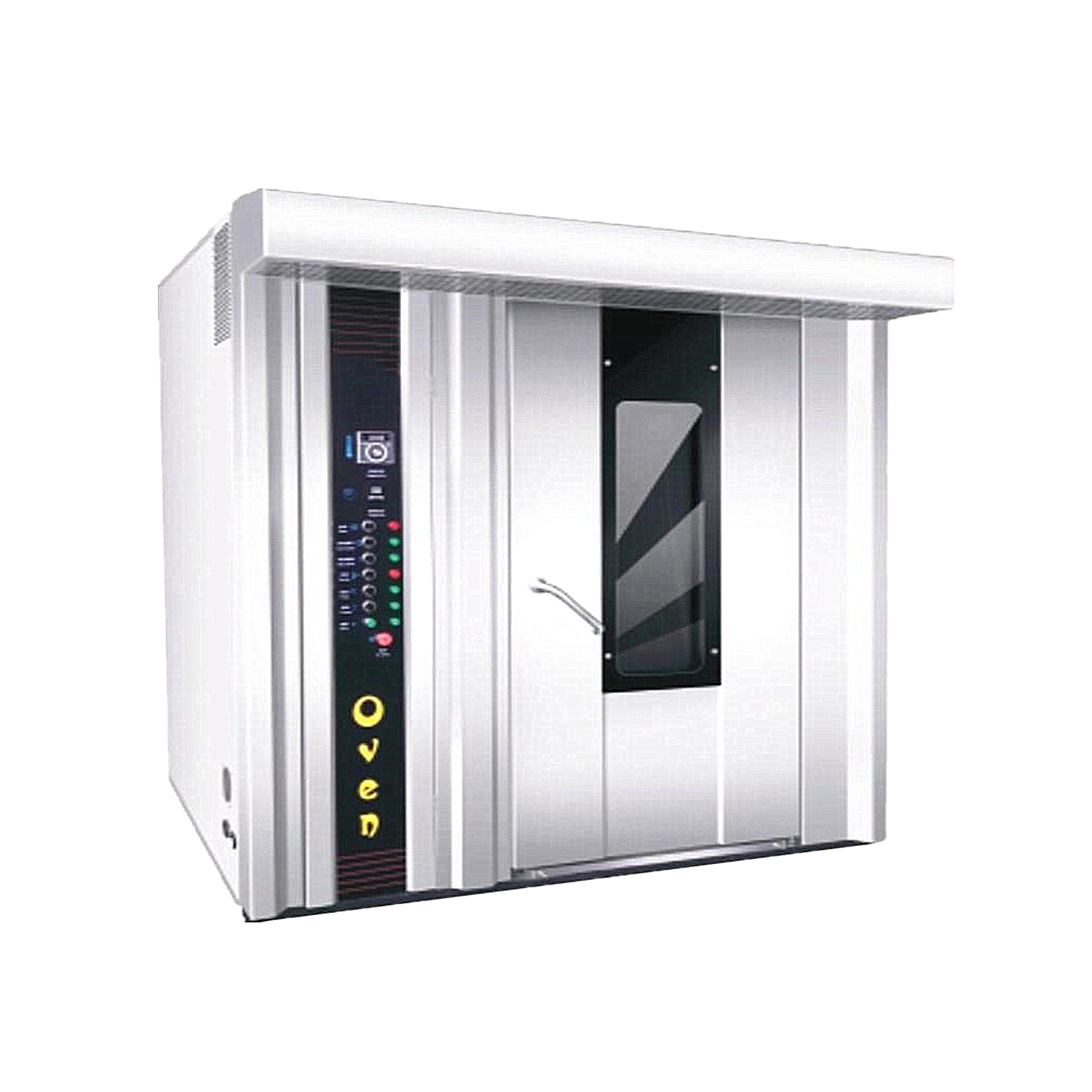

Rotary oven

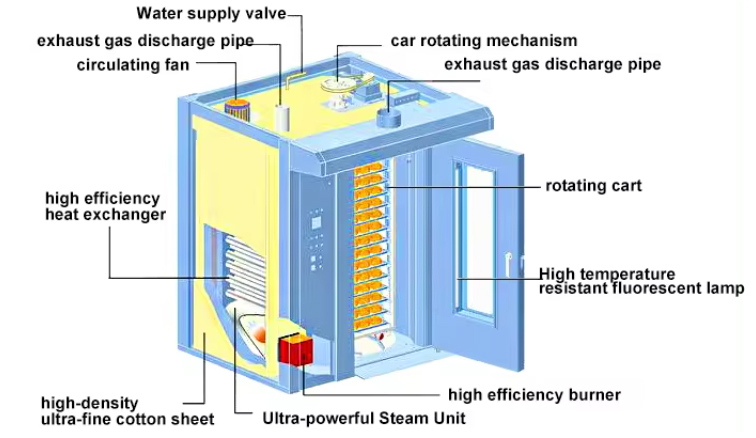

The hot air rotary oven uses a variety of different energy sources to heat the combustion chamber, and sends hot air into the furnace through a heat exchanger and a fan to bake the items in the furnace.

1

The inner tank and outer shell are made of stainless steel, which is clean and hygienic.

2

Super thermal insulation, tight sealing and good thermal insulation performance, reducing heat loss.

3

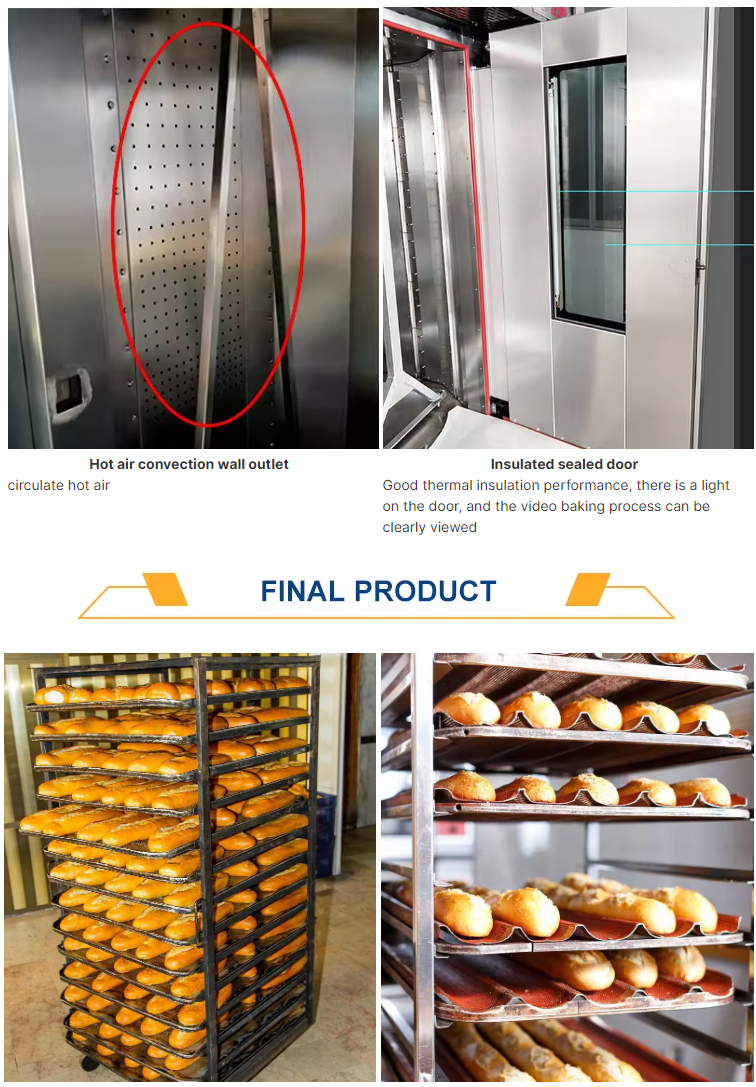

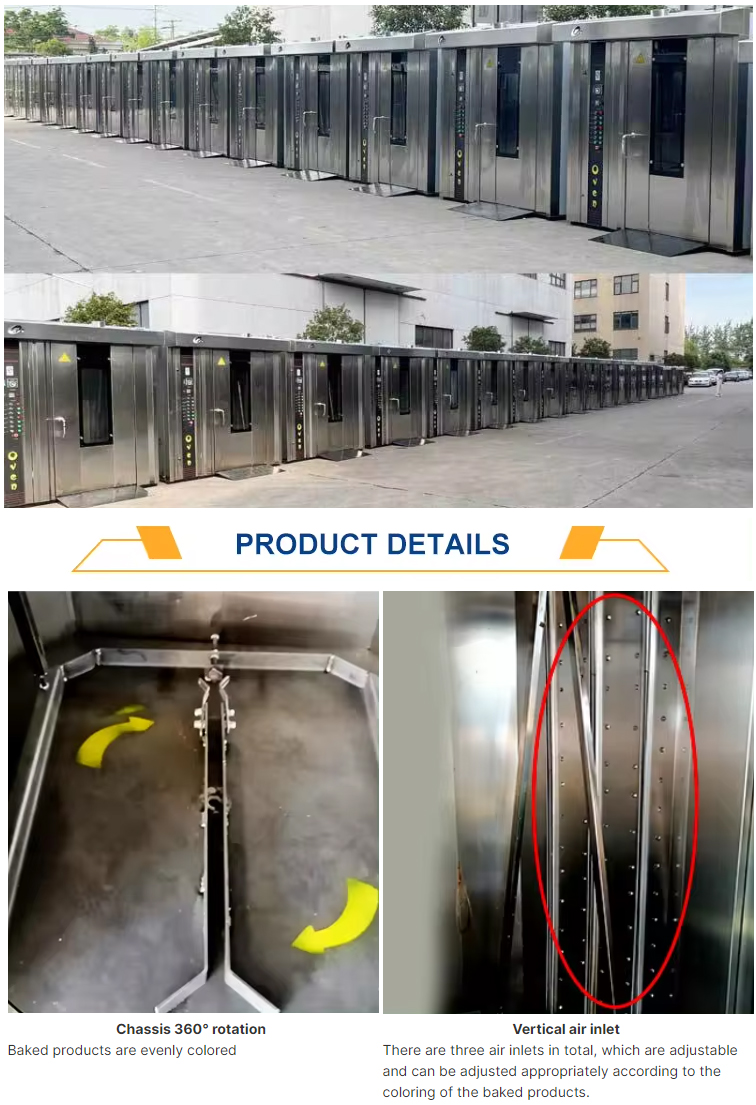

The combination of hot air convection circulation and slowly rotating trolley allows all parts of the food to be heated evenly during the baking process.

4

The water spray humidification device ensures the temperature in the furnace and the standard temperature of the food.

5

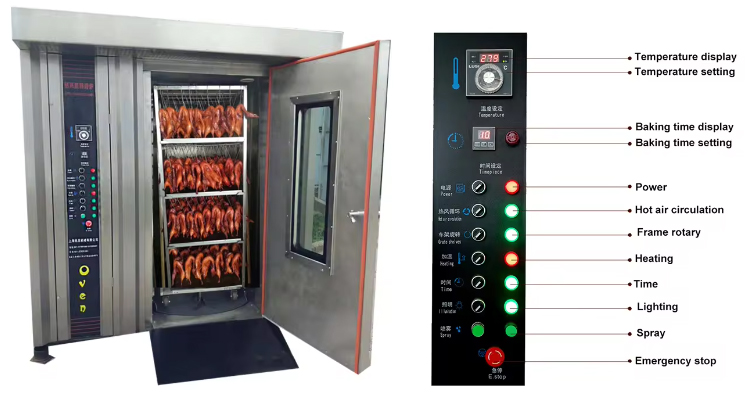

Equipped with a lighting system, the baking process of food can be clearly observed through the oven door glass.


Model

Heating type

Voltage

power

Energy consumption

Dimensions

Total Weight

JC-16E

electric

3N380V

2.5KW

24KW

1750*1530*1950MM

1000KG

JC-16D

diesel fuel

3N381V

2.5KW

2L/H

1750* 1530*1950MM

1000KG

JC-16G

gas

3N382V

2.5KW

3KG/H

1750*1530*1950MM

1000KG

JC-32E

electric

3N383V

2.5KW

48KW

2000*1800*2200MM

1300KG

JC-32D

diesel fuel

3N384V

2.5KW

4L/H

2000*1800*2200MM

1300KG

JC-32G

gas

3N385V

2.5KW

5KG/H

2000*1800*2200MM

1300KG

JC-64E

electric

3N386V

2.5KW

72KW

2600*2350*2300MM

2000KG

JC-64D

diesel fuel

3N387V

2.5KW

6L/H

2600*2350*2300MM

2000KG

JC-64G

gas

3N388V

2.5KW

7KG/H

2600*2350*2300MM

2000KG
