  • Vacuum dough mixer

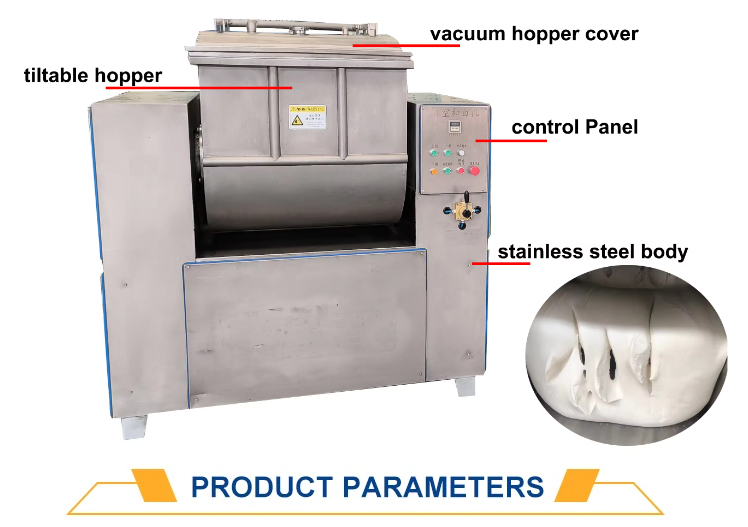

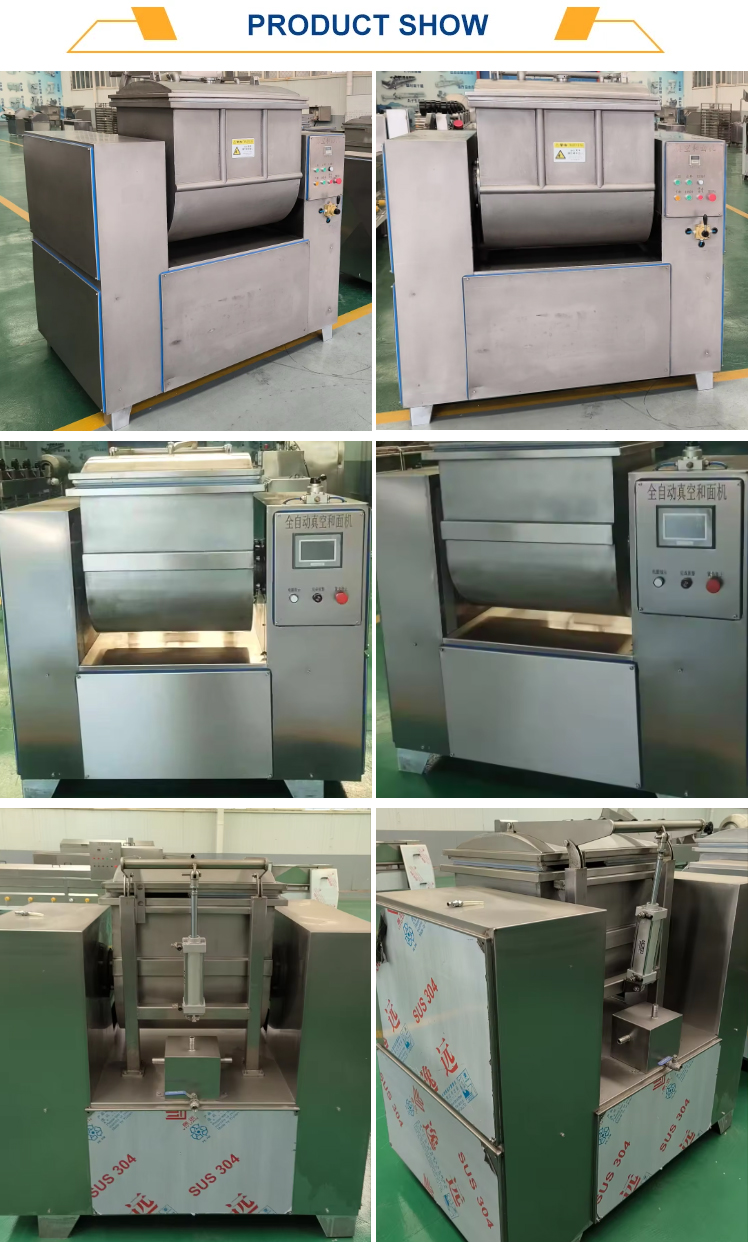

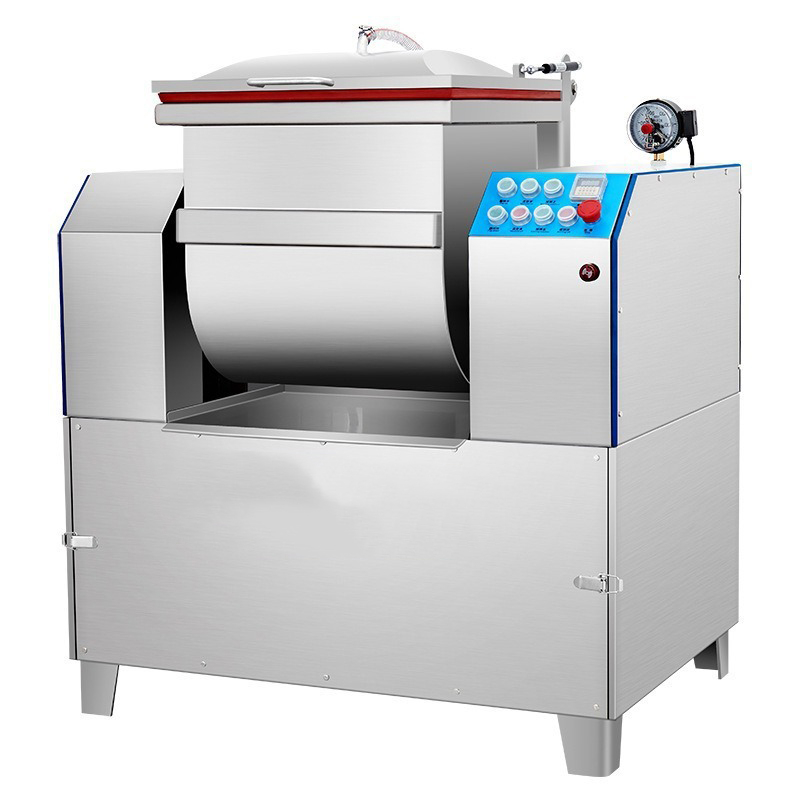

Vacuum dough mixer


Vacuum dough mixer is based on ordinary dough mixer, it has vacuum pump, It adopts the blade type mixer, under the vacuum state simulation by hand , can fully promote the flour gluten formation, water content is 10-20% higher than dough mixed by ordinary dough mixer. the dough has higher quality of bright, uniform, flexible, high gluten strength,etc.



Model

ZKHM-15

ZKHM-25

ZKHM-50

ZKHM-100

ZKHM-200

Vacuum degree

-0.095Mpa

Flour volume/time

12.5kg

25kg

50kg

100kg

200kg

Mixer speed

30rpm

30/45rmp

Power

2.2kw

3kw

4kw

7.5kw

16kw

Weight

430kg

480kg

760kg

900kg

1500kg

Dimension(mm)

1100*580*1200

1380*580*1200

1580*710*1354

1800*810*1454

1960*934*1734
